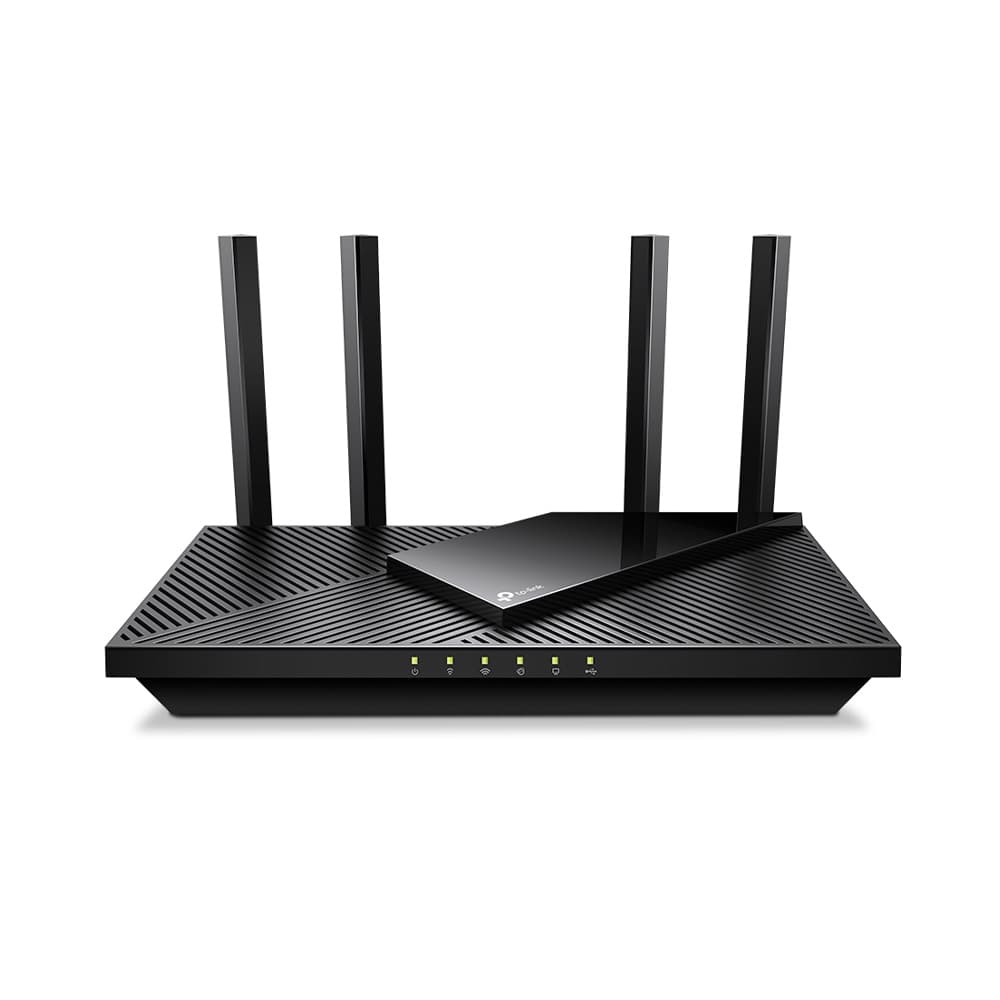

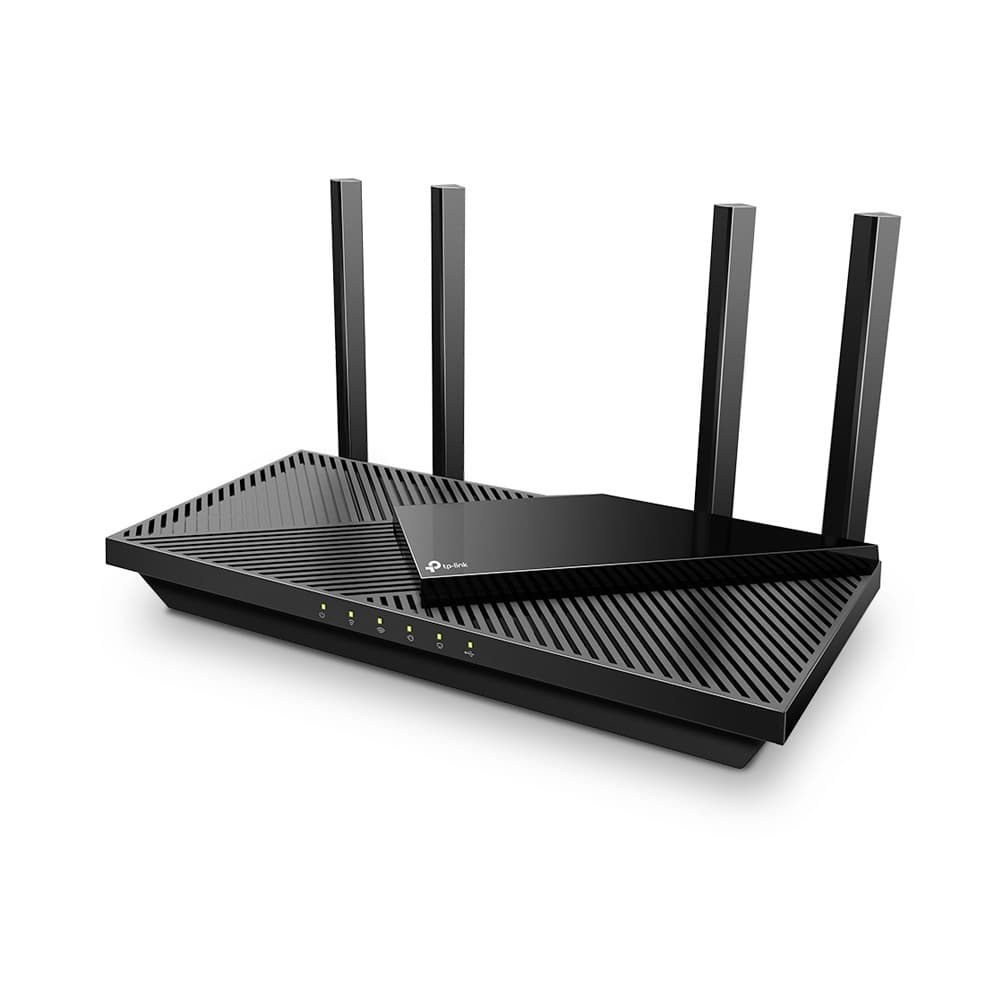

Bộ định tuyến TP-Link Archer AX55 Pro Wi-Fi 6 AX3000 Multi-Gigabit với hai cổng 2.5G

0.0

(0 đánh giá)

Thông số kỹ thuật chi tiết

THÔNG SỐ KỸ THUẬT

WI-FI
Standards and Protocols

Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range3 Bedroom Houses• 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

• High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity

High• Dual-Band

Allocate devices to different bands for optimal performance

• OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

• Airtime Fairness

Improves network efficiency by limiting excessive occupation

• DFS

Access an extra band to reduce congestion

• 4 Streams

Connect your devices to more bandwidth

Working Modes

• Router Mode

• Access Point Mode

BẢO MẬT
Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

HomeShield SecurityReal-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN

• PPTP

• L2TP

• WireGuard

VPN Client

• OpenVPN

• PPTP

• L2TP

• WireGuard

WiFi Encryption

• WPA3

• WPA2

• WPA

• WPA/WPA2-Enterprise (802.1x)

HARDWARE
Ethernet Ports

• 1× 2.5 Gigabit WAN Port

• 1× 2.5 Gigabit LAN Port

• 3× Gigabit LAN Ports

USB Support

1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons

Wi-Fi/WPS Button

Power On/Off Button

Reset Button

Power

• 12 V/ 2 A (US Version)

• 12 V/ 1.5 A (EU Version)

SOFTWARE
Protocols

• IPv4

• IPv6

Service KitsHomeShield
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls

HomeShield Parental Controls• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports

WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP

Quality of ServiceQoS by Device
Cloud Service

• Auto Firmware Upgrade

• OTA Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management Features

• Tether App

• Webpage

OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power

• CE:

<20dBm(2.4GHz)

<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)

<30dBm (5.47GHz~5.725GHz)

• FCC:

<30dBm (2.4GHz)

<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz)

<24dBm (5.25GHz~5.35GHz&5.47GHz~5.725GHz)

WiFi Reception Sensitivity

• 2.4 GHz:

11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,

11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,

11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,

11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm

• 5 GHz:

11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,

11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,

11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,

11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,

11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,

11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,

11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
Dimensions (W×D×H)

10.2 × 5.3 × 1.5 in

(261 × 134.5 × 41.0 mm)

Package Content

• Wi-Fi Router Archer AX55 Pro

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
